Home > Solar PV Energy System >

MITSCN-30072-210, 210 Mono Flexible Solar Panel 300w 126cells 20008502.5mm

Product Categories

Beijing MITSCN Co., Ltd.

Contact Now

Name: MITSCN30072210 210 Mono Flexible Solar Panel 300w 126cells 200085025mm
Brand: Mitscn
Price: 1 USD

Brand Name : Mitscn

Certification : ISO

Place of Origin : China

MOQ : Negotiatble

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 20days

Packaging Details : carton,wooden case,pallet,full container

Power : 300w

Solar cell : Mono (210mm)

Solar cell number : 126cells (9*14)

Dimension : 2000*850*2.5mm

Voltage at Pmax（Vmp） : 72.00V

Current at Pmax（Imp） : 4.10A

Contact Now

Mono 210 MITSCN-30072-210,210 Mono Flexible Solar Panel

Optional Surface Material

*Surface ETFE

*Surface Frosted PET

*Surface Clear PET

Liectrical Parameters at(STC)
Power(W)	300W
Module Efficiency(%)	17.64%
Voltage at Pmax(Vmp)	72.00V
Current at Pmax(Imp)	4.10A
Open Circuit Voltage(Voc)	86.00V
Short Circuit Current(lsc)	4.65A
Power Tolerance(W)	±3%

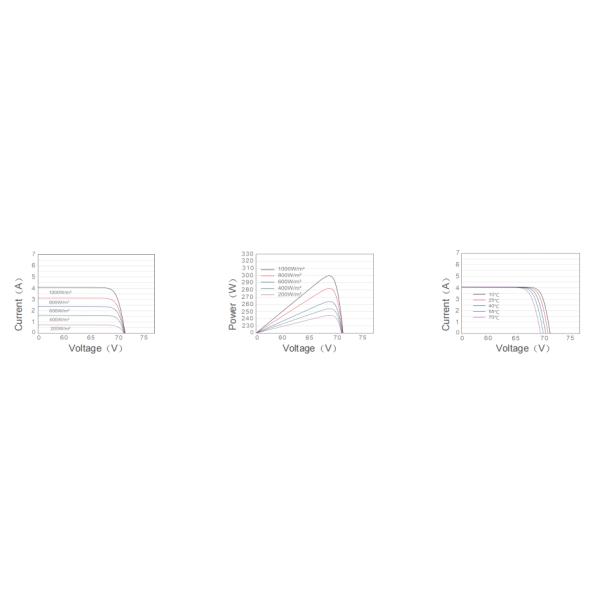

Characteristics

Product Tags:

Mono Solar Panel 300w
